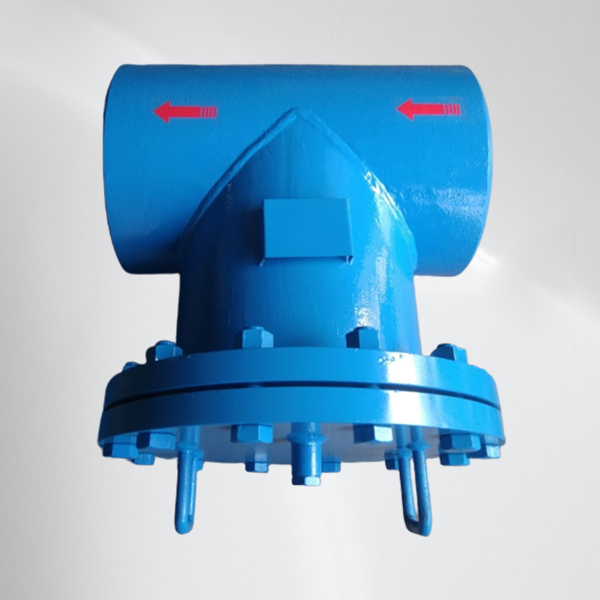

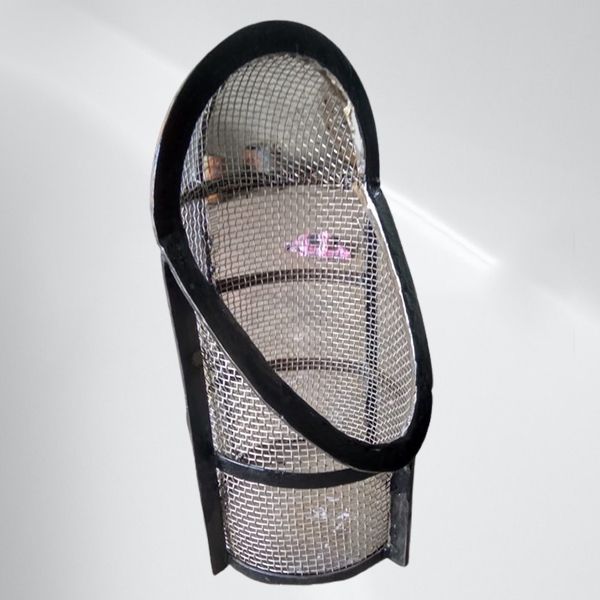

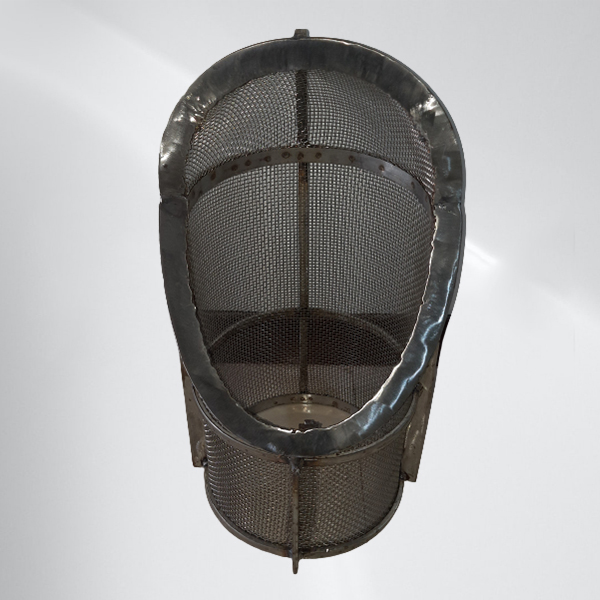

GTS Filters are a large manufacturer of Strainers/Filters in the country. Sold under the brand name “Guru”, these are used to separate coarse particles. There are 4 common types of strainers used for oil and gas filtration. They are simplex strainers, y strainers, duplex strainers, and automatic strainers. Each different type of strainer has its advantages when being used. A T-type strainer is a custom-made compound filter to extract contaminants from industrial pipelines. It is designed in such a way that it can offset the inlet and outlet by 90 degrees, forming an elbow shape. It is thus helpful in serving applications with space constraints A tee strainer is put in a section of pipe to filter out contaminants and debris from a fluid process. Tee strainers can connect to the piping in a variety of ways, such as bolted flanges, threaded piping, and occasionally welding. Strainer/Filter elements are easy to remove and clean. Our Strainers in MS/CS MOC are available with Painted, hot dip galvanized, or powder coated. Strainers in SS MOC is available with mirror polished on both side or glass bead blasting.
We offer the following types of strainers
Line Size: ¼” NB to 30” NB End Connections: 150# & 300# Flanged, Table E & Table F Flanges, DIN Standard Flanges Butt Weld, NPT/BSP Threaded, Hose Pipe Conn., Tri Clover Adaptor, SMS Union/Dairy Conn.
Material of Construction : CS, MS, SS304, SS304L, SS316, SS316L, SS317L
Operating Pressure: 0 to 50 Bar
Operating Temperature: 15 Deg. C to 500 Deg. C
Flow Rate: Up to 1000 M3/Hr. & More
Filtration Rating: 1 Micron to 6000 Micron & More Top cover with nut & bolts type or quick opening type
Advantages:
Applications:
