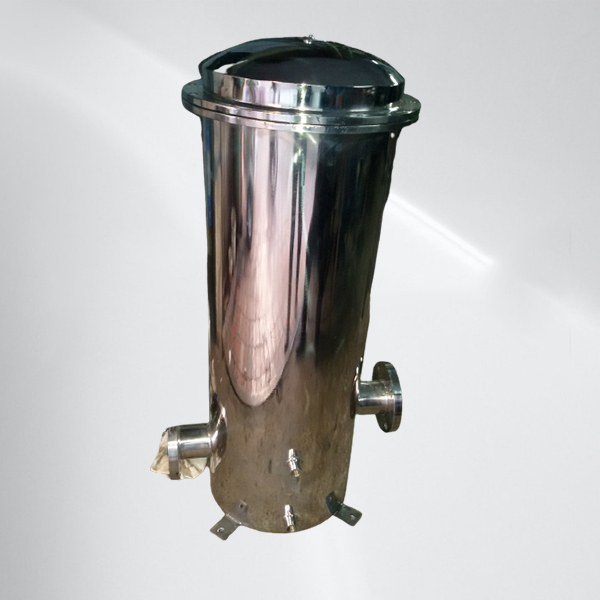

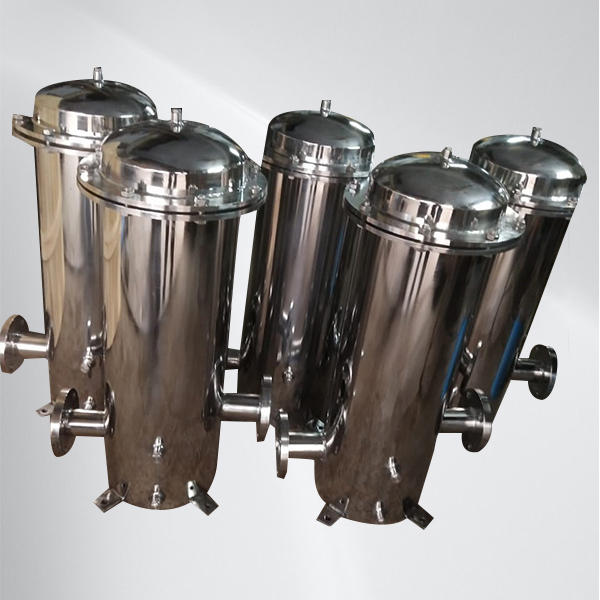

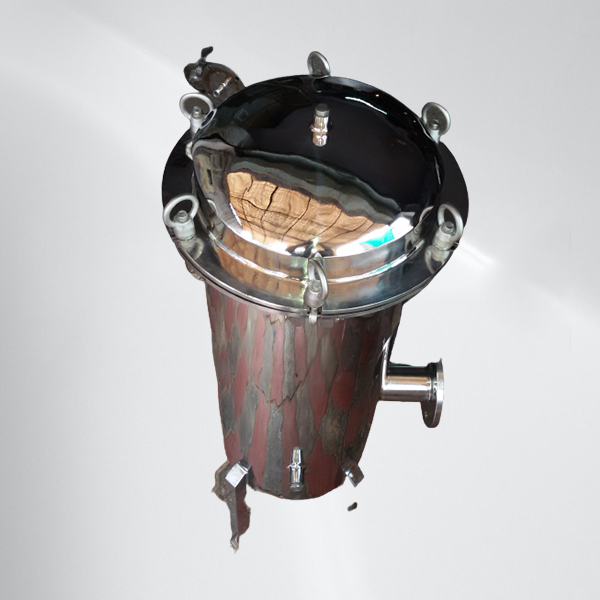

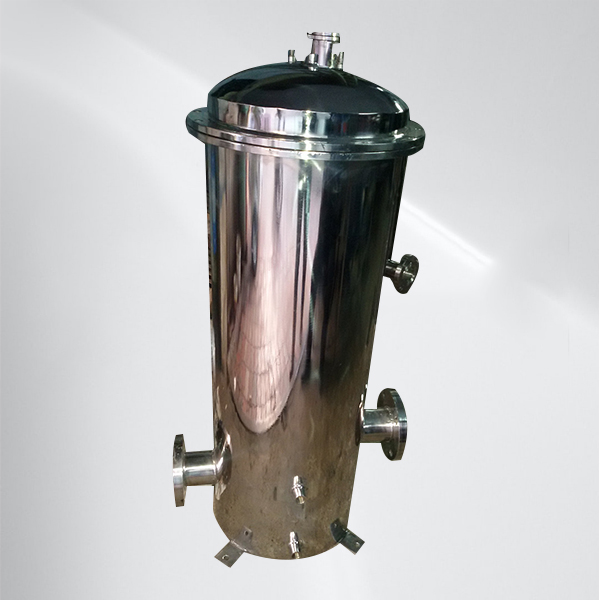

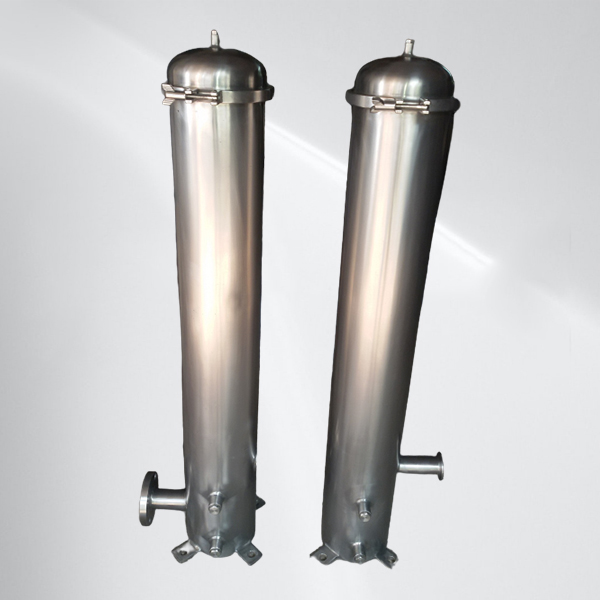

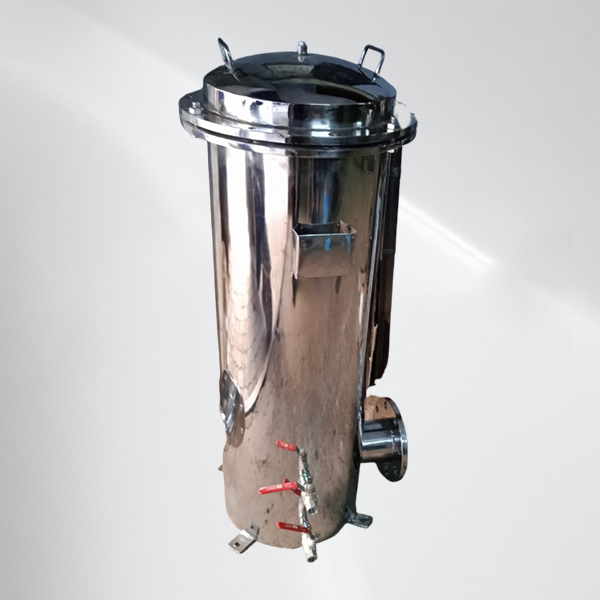

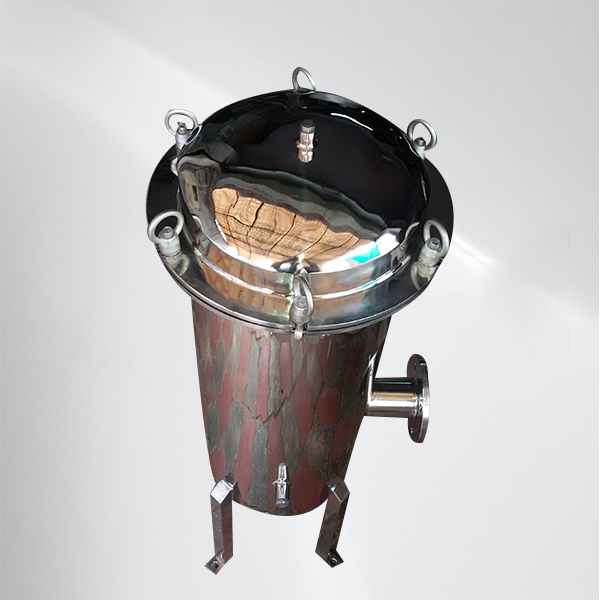

GTS Filters manufactures a wide range of cartridge filter housings for various applications. When the flow rates are larger or the liquids are more viscous, there is a need for a larger filtration area. In such conditions, we offer multiple filter cartridges within a filter housing and these are called Multi Cartridge Filter. Our Cartridge Filter Housings are designed based on flow rates, the viscosity of the liquid, operating pressure and temperature, etc. We can also design filter housings with manual backwash. Our Filter Housings in MS/CS MOC have options of externally Painted, hot dip galvanized, or powder coated. Filter Housing in SS MOC has the option of mirror polish both inside and outside, dull polish, or glass bead blasting. We can provide the following Cartridge Filter Housings:
Line Size: ¼” NB to 30” NB End Connections: 150# & 300# Flanged, Table E & Table F Flanges, DIN Standard Flanges Butt Weld, NPT/BSP Threaded, Hose Pipe Conn., Tri Clover Adaptor, SMS Union/Dairy Conn.
Material of Construction: CS, MS, SS304, SS304L, SS316, SS316L, SS317L
Operating Pressure: 0 to 50 Bar
Operating Temperature: 15 Deg. C to 500 Deg. C
Flow Rate: Up to 1000 M3/Hr. & More
Filtration Rating: 0.5 Micron to 200 Micron
Top cover with nut & bolts type or quick opening type
Advantages:
Applications:
