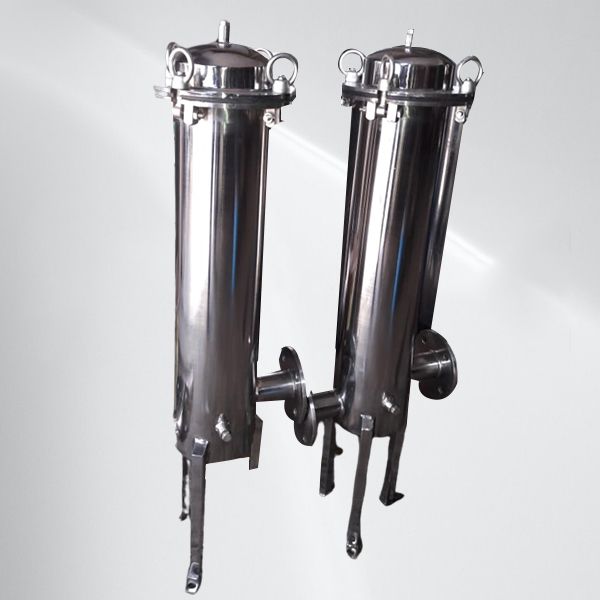

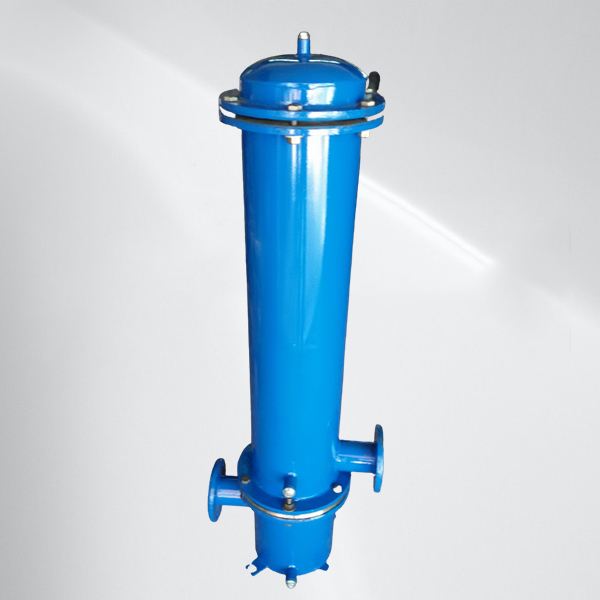

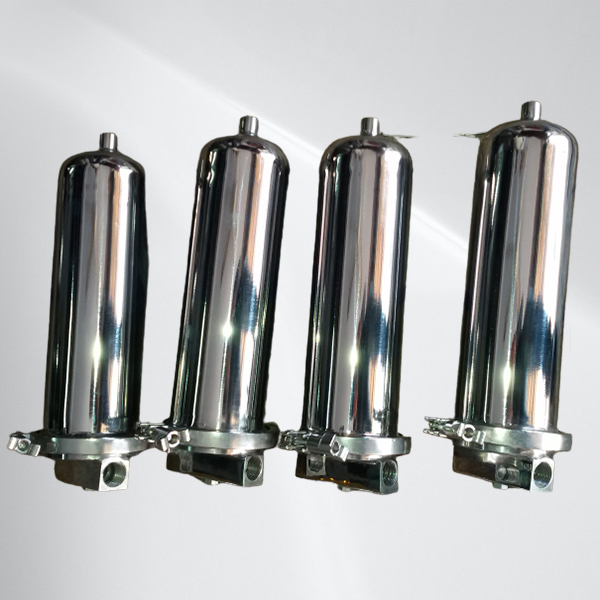

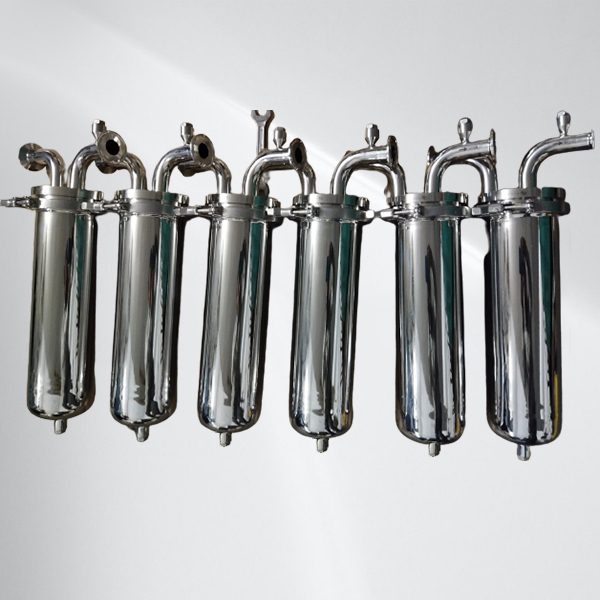

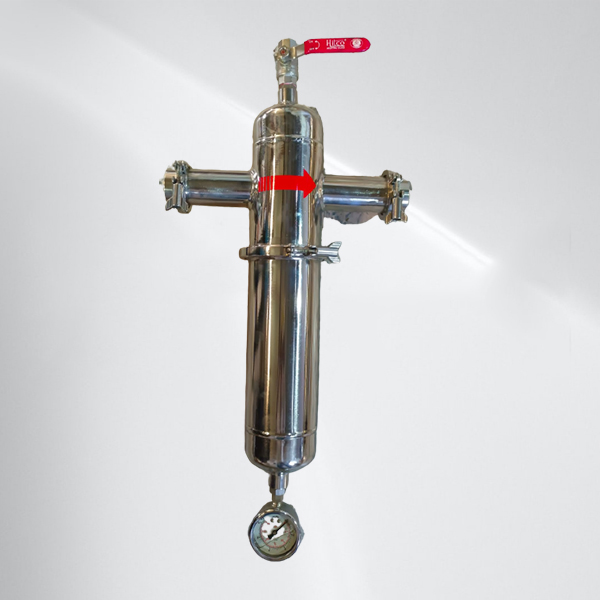

GTS FILTERS design and manufacture Industrial Cartridge Filter Housings after a thorough study of customers’ filtration requirements. Here the filtration efficiency, selection of the right filter cartridge, chemical compatibility of the filter cartridge as well as filter housing all play a major role in finalizing the right cartridge filter housing. We offer a wide range of flow capacity and dust holding capabilities, with either flow directions - in to out or out to in as per application. Our Filter Housing in MS/CS MOC is available with Painted, hot dip galvanized, or powder coated. Filter Housing in SS MOC is available with mirror polished on both sides or glass bead blasting. We manufacture Industrial Cartridge Filter Housings suitable for -
Line Size: ¼” NB to 30” NB
End Connections: 150# & 300# Flanged, Table E & Table F Flanges, DIN Standard Flanges Butt Weld, NPT/BSP Threaded, Hose Pipe Conn., Tri Clover Adaptor, SMS Union/Dairy Conn.
Material of Construction: CS, MS, SS304, SS304L, SS316, SS316L, SS317L
Operating Pressure: 0 to 50 Bar
Operating Temperature: 15 Deg. C to 500 Deg. C
Flow Rate: Up to 1000 M3/Hr. & More
Filtration Rating: 0.2 Micron to 6000 Micron & More
Top cover with nut & bolts type or quick opening type
Advantages:
Applications:
GTS Filters And Systems (India) Pvt. Ltd.
