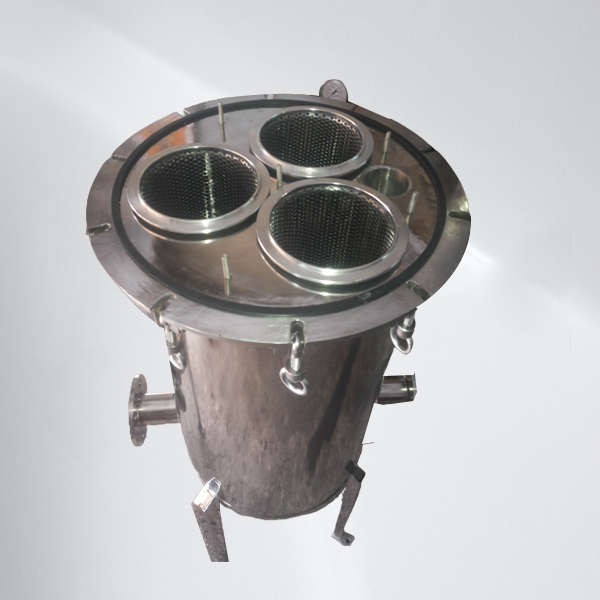

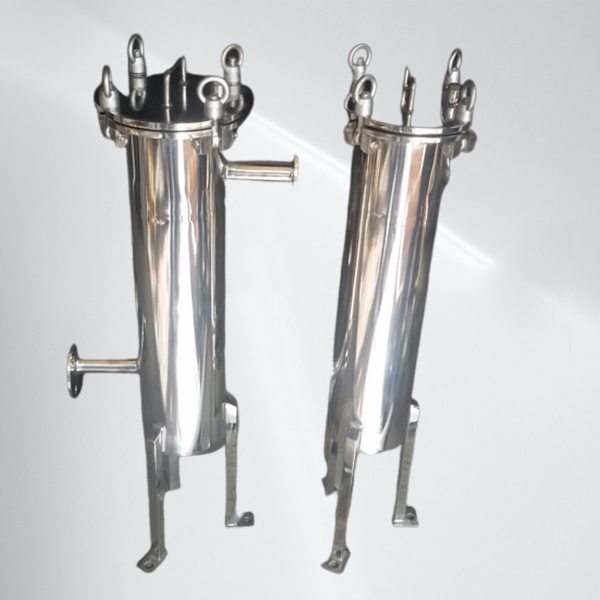

GTS Filters manufactures a wide range of filter bag housings for various applications. When the flow rates are larger or the liquids are more viscous, there is a need for a larger filtration area. In such conditions, we offer multiple filter bags within a filter housing and these are called Multi Bag Filter Housings. Our Filter Bag Housings are designed based on flow rates, the viscosity of the liquid, operating pressure and temperature, etc. Normally they are designed to hold the dirt in the bag but can also be designed for reverse flow, where the dirt is held on the outer surface of the filter bag and can be back washed. Our Filter Housings in MS/CS MOC have options of externally Painted, hot dip galvanized, or powder coated. Filter Housing in SS MOC has the option of mirror polish both inside and outside, dull polish, or glass bead blasting.
Filter Bag Housing design available with us
Line Size: ¼” NB to 30” NB End Connections: 150# & 300# Flanged, Table E & Table F Flanges, DIN Standard Flanges Butt Weld, NPT/BSP Threaded, Hose Pipe Conn., Tri Clover Adaptor, SMS Union/Dairy Conn.
Material of Construction: CS, MS, SS304, SS304L, SS316, SS316L, SS317L
Operating Pressure: 0 to 50 Bar
Operating Temperature: 15 Deg. C to 500 Deg. C
Flow Rate: Up to 1000 M3/Hr. & More

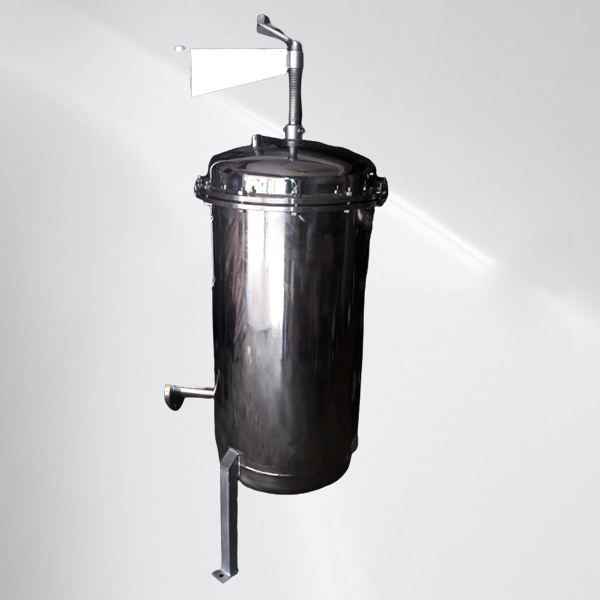

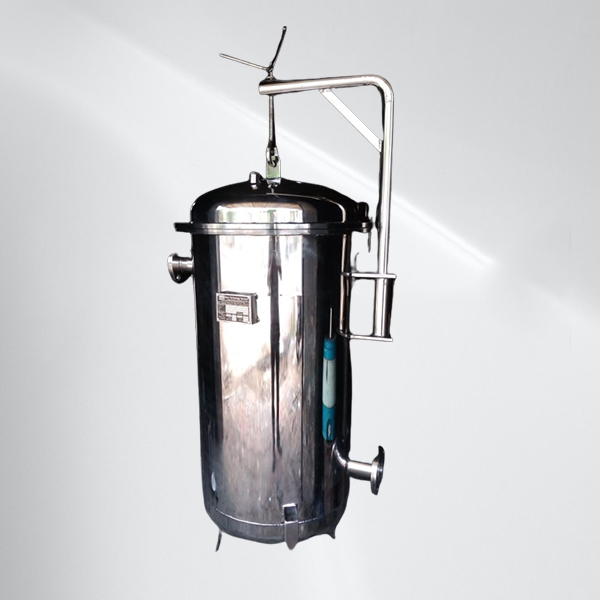

Filtration Rating: 0.5 Micron to 200 Micron Top cover with nut & bolts type or quick opening type
Advantages:
Applications:
