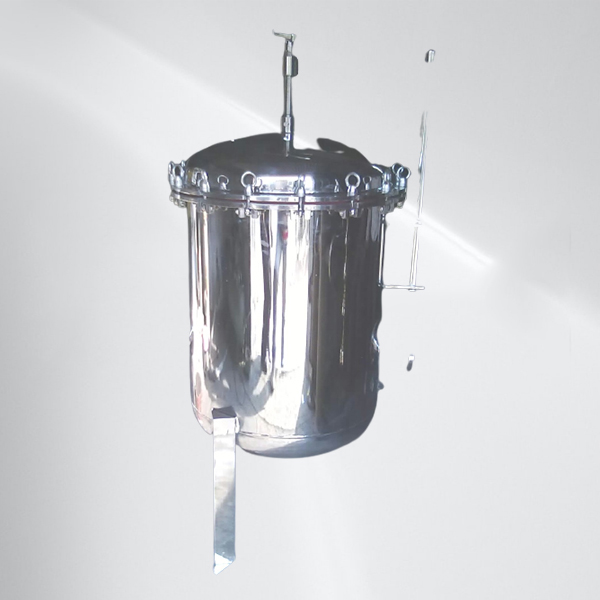

Multi Bag Filter

GTS Filters manufactures Multi Bag Filters used in very large flows. These are used for a wide range of fluid and highly viscous fluid applications. Multi Bag Filters as the name suggests have multiple bags within a filter. These are used when the flow is very large, or liquid is very viscous, or also when the dirt load is very high and the process cannot be interrupted frequently for a change of filter bags. We also offer duplex-type bag filters for continuous operation. Our Duplex bag filter in MS/CS MOC is available with Painted, hot dip galvanized, and powder coated. A bag filter in SS MOC is available with mirror polished on both sides and glass bead blasting. The bag filter is constructed with filter housing, filter bag, internal cage to support bags and inlet/outlet end connections.

Multi Bag filters normally have two or more Standard Filer Bag Sizes as follows:

•    Ø4” x 20” Long
•     Ø7” x 17” Long

    Ø7” x 32” Long

Filter Bag Configuration

•     PP Collar Type Filter Bag
• SS Ring Type Filter Bag

Filter Bag Media:

•     Polypropylene
•     Polyester
•     Nylon

We can offer Bag filters with various designs as follows:

•     Single Bag Filter
•     Multi Bag Filter
•     Single Bag Duplex Filter
•     Multi Bag Duplex Filter
•     Jacketed Bag Filter
