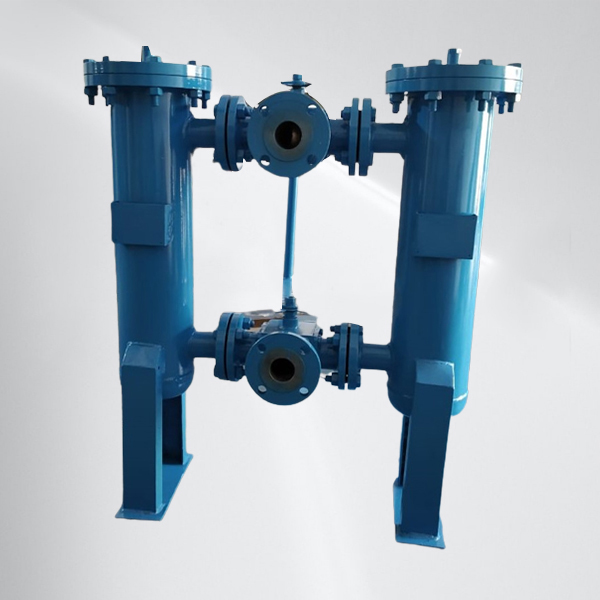

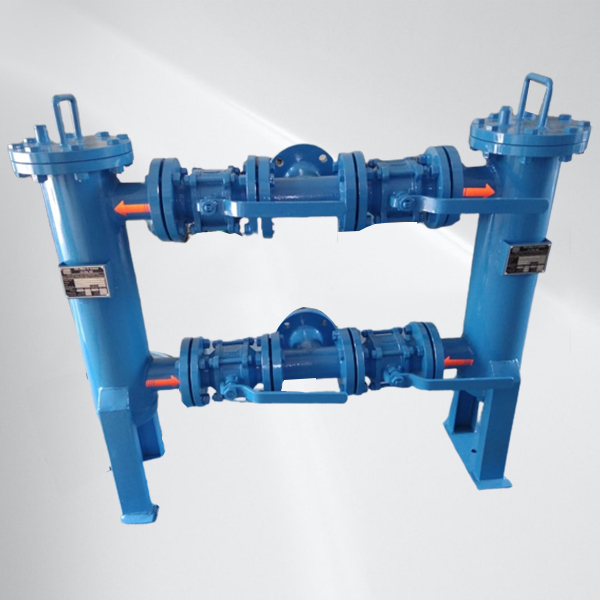

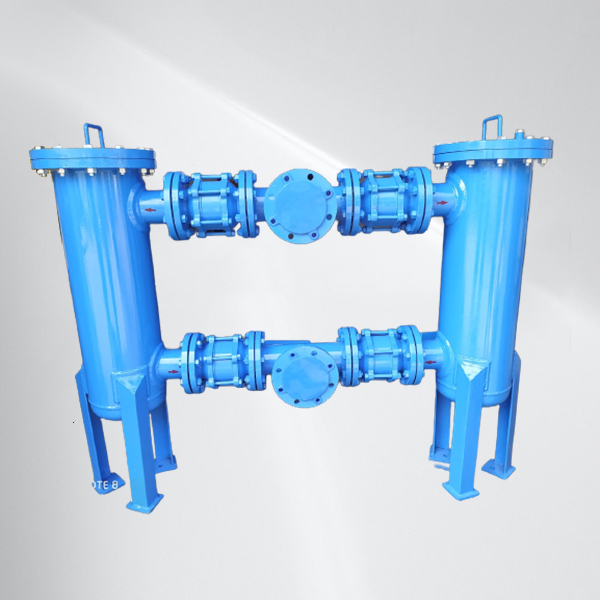

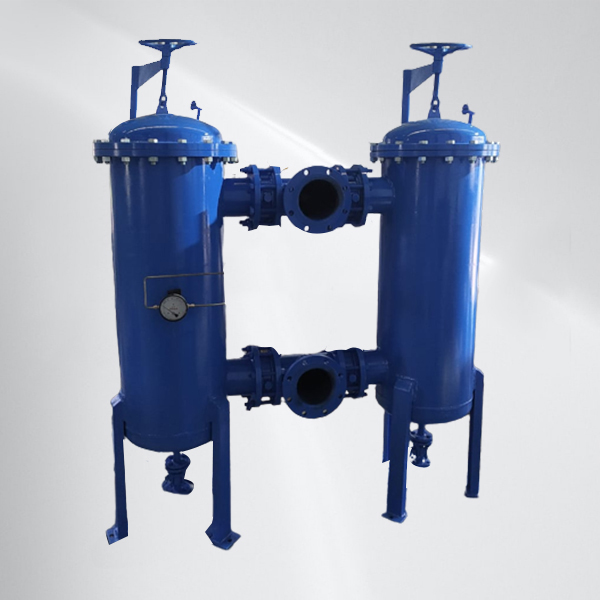

GTS FILTERS manufactures an Industrial Duplex Filter used for continuous operation without stoppage of the filtration process. An Industrial Duplex filter is also known as one working and one standby filter. Industrial Duplex Filters are available with 3-way ball valves, 2-way ball valves, and butterfly valves. Filter elements are easy to remove and clean. We offer an Industrial Duplex filter with flow direction in to out or out to in as per dirt load and application. We also offer back wash arrangement. Our Industrial Duplex filter in MS/CS MOC is available with Painted, hot dip galvanized, or powder coated. An Industrial Duplex filter in SS MOC is available with mirror polished on both sides or glass bead blasting.
Duple filter design available with us
Line Size: ¼” NB to 30” NB End Connections: 150# & 300# Flanged, Table E & Table F Flanges, DIN Standard Flanges Butt Weld, NPT/BSP Threaded, Hose Pipe Conn., Tri Clover Adaptor, SMS Union/Dairy Conn.
Material of Construction : CS, MS, SS304, SS304L, SS316, SS316L, SS317L
Operating Pressure: 0 to 50 Bar
Operating Temperature: 15 Deg. C to 500 Deg. C
Flow Rate: Up to 1000 M3/Hr. & More
Filtration Rating: 0.5 Micron to 6000 Micron & More
Top cover with nut & bolts type or quick opening type
Advantages:
Applications:
GTS Filters And Systems (India) Pvt. Ltd.
