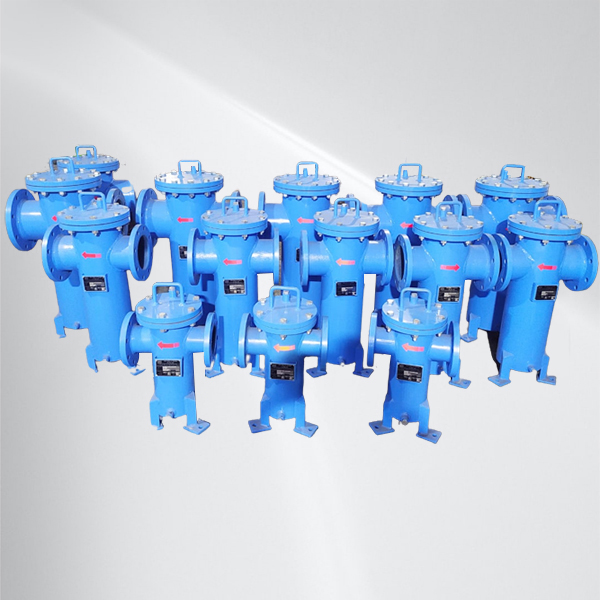

GTS Filters manufactures critical Cooling Tower Basket Filters, which are extremely important in protecting the pump. Cooling Tower Basket Filters prevent dirt from cooling the tower clogging the pump and preventing it from breakdown. The Basket Filter elements are easy to remove and clean. We offer basket filters with flow direction in to out or out to in as per dirt load and application. Basket Filter design is available with single strainer elements, double cylinder type strainer elements, multi strainer elements, and pleated type strainer elements. Our Bucket Filters in MS/CS MOC are available with Painted, hot dip galvanized and powder coated. A basket Filter in SS MOC is available with a mirror-polished on both sides and glass bead blasting. GTS Filters also manufactures and supplies replacement strainer elements used in Basket Filters. These are manufactured based on drawings or dimensions given by customers. Apart from Cooling Tower Basket Filters, we design and manufacture the following:
Line Size: ¼” NB to 30” NB
End Connections: 150# & 300# Flanged, Table E & Table F Flanges, DIN Standard Flanges Butt Weld, NPT/BSP Threaded, Hose Pipe Conn., Tri Clover Adaptor, SMS Union/Dairy Conn.
Material of Construction : CS, MS, SS304, SS304L, SS316, SS316L, SS317L
Operating Pressure: 0 to 50 Bar
Operating Temperature: 15 Deg. C to 500 Deg. C
Flow Rate: Up to 1000 M3/Hr. & More
Filtration Rating: 1 Micron to 6000 Micron & More Top cover with nut & bolts type or quick opening type
Advantages:
Applications:
